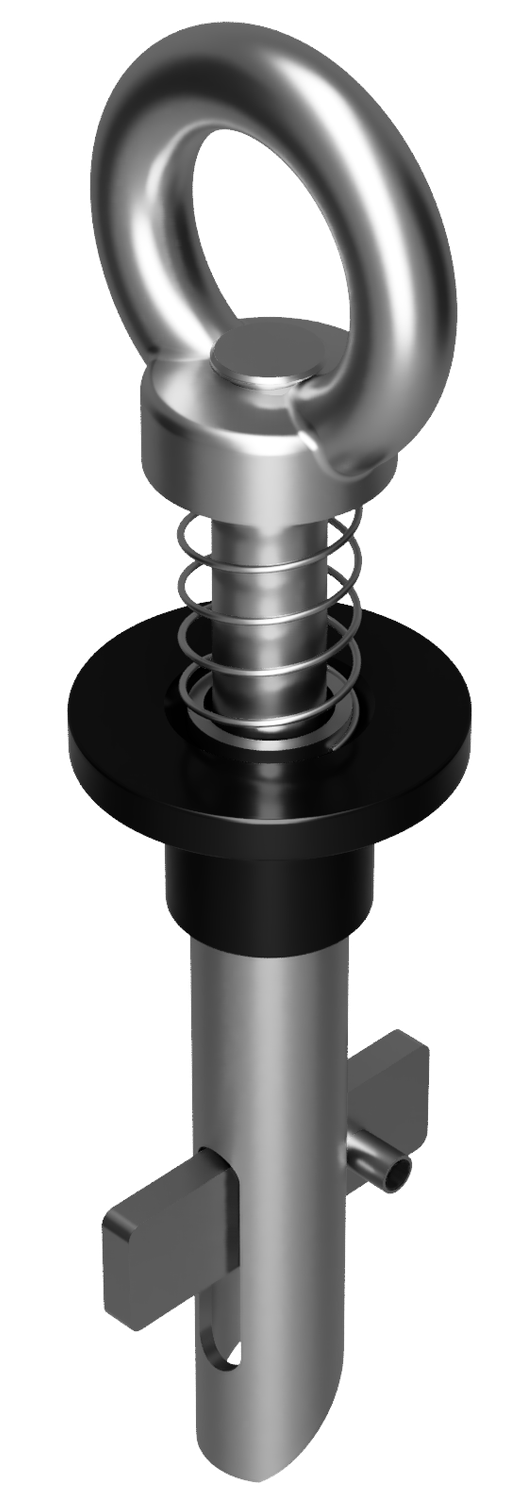

Removable Anchor for Steel Structure

This steel structure anchor with integrated lifting eye is a mechanical anchorage device designed for installation in steel members, such as beams, plates, or fabricated steel structures. The spring-loaded locking mechanism allows quick engagement inside a pre-drilled steel hole, while the forged eye provides a secure attachment point for fall protection systems, lifelines, and lanyards.

This anchor is intended for temporary or semi-permanent use where a reliable anchorage point is required without welding or permanent modification of the steel structure.

• Designed specifically for steel substrates
• Spring-loaded mechanical locking system
• Integrated forged lifting eye for direct connection
• Fast installation and removal
• No welding required
• Compact design for low-profile installations

• Suitable for temporary anchorage applications

Anchor Type: Steel structure anchor with lifting eye

Thread / Eye Size: M14

Material: Stainless Steel (eye and shaft)

Locking Mechanism: Spring-loaded mechanical expansion

Installation Substrate: Structural steel

Installation Type: Pre-drilled hole

Minimum Steel Thickness: As specified by the manufacturer

Eye Type: Forged round lifting eye

Loading Direction: Axial (vertical loading only)

Reusability: Yes (when removed correctly)

• Fall arrest anchor point on steel structures
• Temporary anchorage for lifelines
• Restraint systems
• Maintenance and service work
• Industrial access and safety systems

• Drill hole to the specified diameter for the anchor
• Install only in structural steel (no hollow or thin sheet metal unless approved)
• Ensure full engagement of the locking mechanism
• Anchor must be loaded only in the approved direction

• Installation and use by a competent person

• Suitable for fall protection systems when properly rated

• Can be tested to comply with:
  • OSHA 1910 / 1926 anchorage requirements
  • CSA Z259 (Canada)
  • EN 795 (as part of a tested system)
