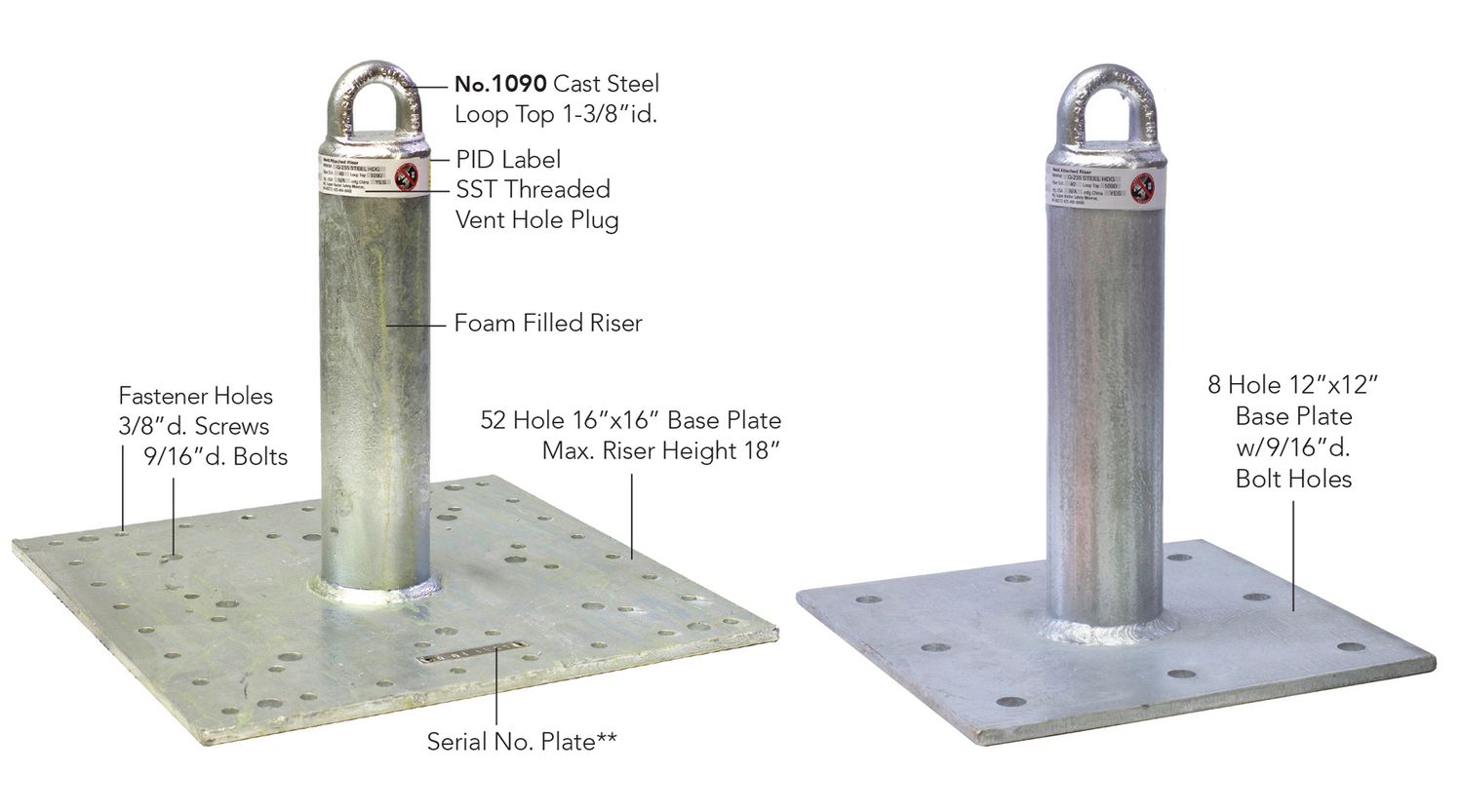

Commercial Roof Anchor w/ 18" Riser

3.0”od. CRA Anchors

Specified for single person PPE anchor point, window washing tie-off and horizontal lifeline lengths up to 240ft. 3rd party certified to comply with current ANSI and OSHA fall protection standards. Install with screws, bolts, concrete embedment, expansion bolts or field welded.

Specifications:

• Min. tensile strength 5,000lb
• No.1090 Q235 steel and 1090-S 316sst loop tops tensile strength rating of 10,000lb*
• Hot dip galvanized (HDG), 304sst or 316sst
• No.2022 40pc 2-1/2” hex head screws for 52 hole base plate models w/max. riser ht.18”
• 3rd party engineering by DH Glabe & Assoc. Report available on request
• Contact SAS sales team for custom mfg. and lead times

Compliance

ANSI Z359.18-17 Type A/T*
Window Washing: ANSI/IWCA I-14.1
OSHA 1926.502
*Request Intertek CRA Lab Report
