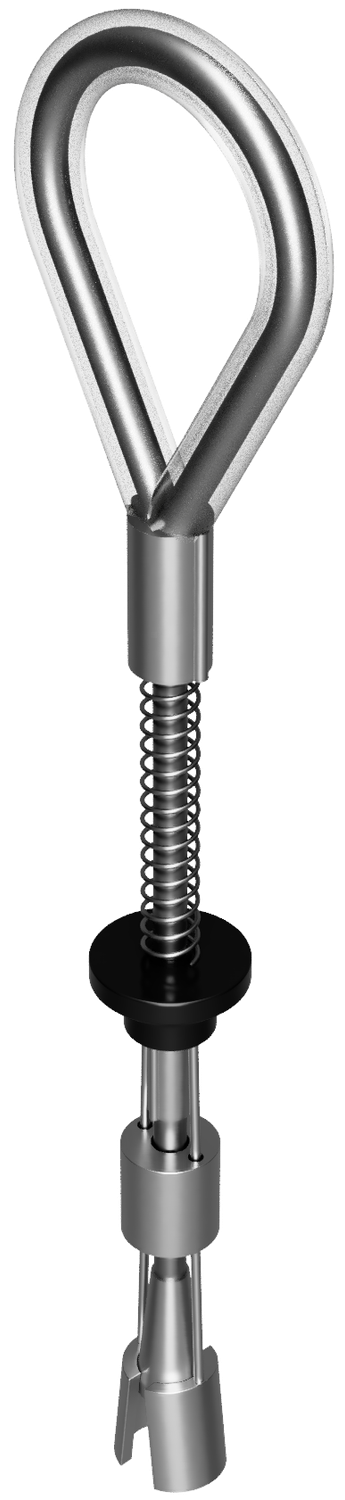

Reusable Concrete Anchor 3/4" 5K

This reusable concrete anchor is a temporary anchorage device designed specifically for installation in solid concrete structures. The anchor features a spring-loaded mechanical expansion head that locks securely inside a properly drilled concrete hole. A flexible galvanized steel cable with a protective coated loop provides a durable and user-friendly attachment point for fall protection equipment.

The removable design allows the anchor to be installed when needed and removed after use, leaving the concrete surface clean and reusable.

• Designed for solid concrete installation

• Spring-loaded mechanical expansion head
• Flexible galvanized steel cable
• High-visibility protective loop coating
• Quick installation and removal
• Reusable temporary anchor
• Compact and lightweight design
• Minimum Breaking Strength: 5000 lb (22.2 kN)
• Permitted Service Temperature Range: -300 to 1300 °F (-340 to 540 °C)

Anchor Type: Removable concrete anchor

Material (Cable): Galvanized steel wire rope

Material (Expansion Head): Stainless steel / alloy steel

Loop Protection: High-visibility coated sleeve

Installation Substrate: Solid concrete only

Installation Method: Drilled hole with mechanical expansion

Minimum Concrete Strength: 25 MPa (3,600 psi) recommended

Loading Direction: Any Direction

Reusability: Yes

• Temporary fall arrest anchor
• Concrete slab anchorage
• Parking structures
• Industrial maintenance access
• Rooftop safety systems

• Precast concrete installations

• Drill hole to manufacturer-specified diameter and depth
• Clean hole of dust and debris before installation
• Insert anchor fully and ensure proper locking engagement
• Install only in sound, non-cracked concrete unless rated for cracked concrete

• Installation and inspection by a competent person

Suitable for fall protection systems when properly rated

Can be tested to comply with:

• CSA Z259.15
• ANSI Z359.18-2017
• OSHA 1910.140
• OSHA 1926.502

REUSABLE CONCRETE ANCHOR
