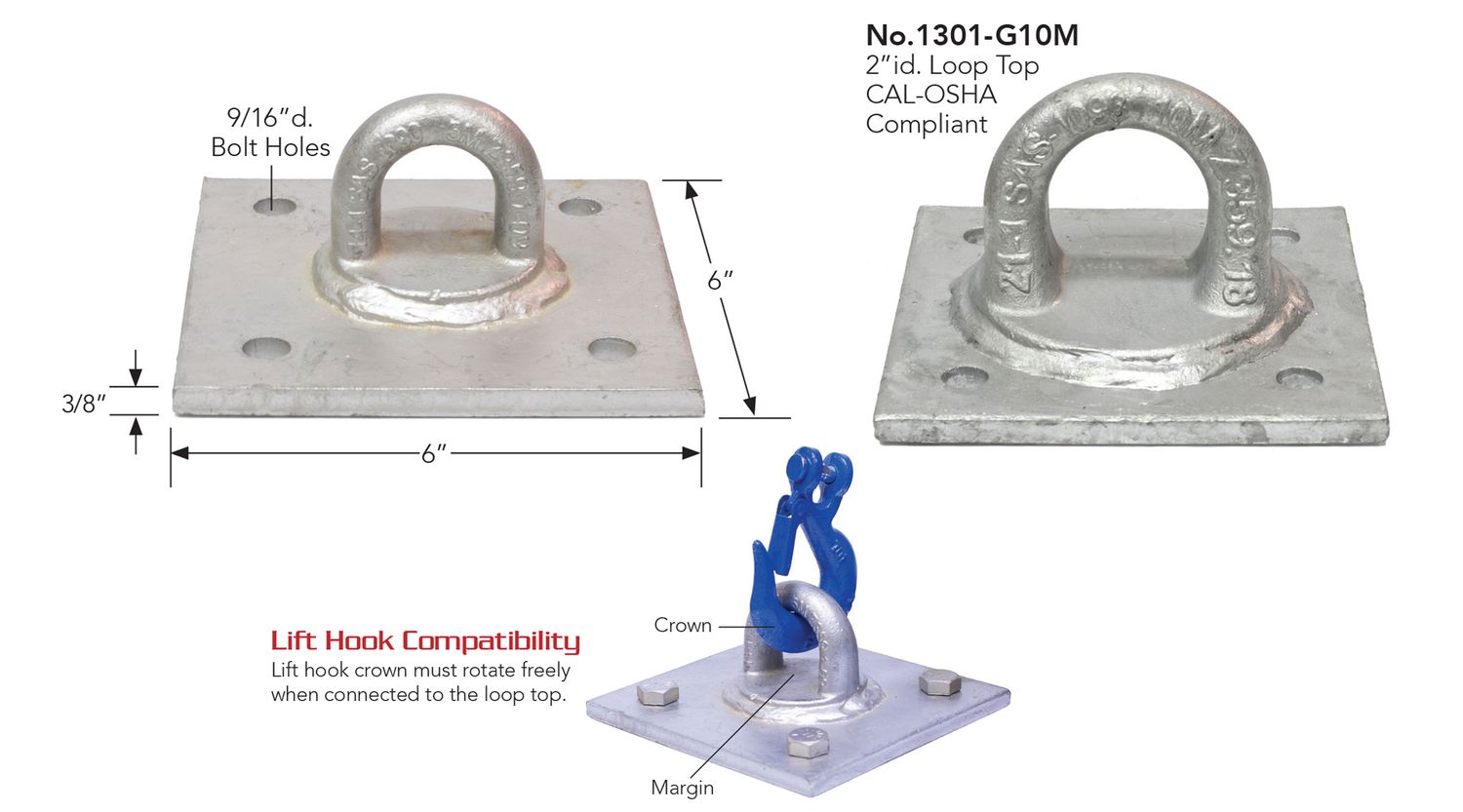

D-Plate Commercial Roof Anchor

D-Plate Hoisting/Lifting Anchors

D-Plate anchors are 3rd party tested and engineered for hoisting/lifting applications.

Specifications

• No.1037-G5M/S5M min. tensile strength 10,000lb
• No.1301-G10M/S10M min. tensile strength 20,000lb
• 3,600lb proof load certificate provided for each D-plate
• 6”x6”x3/8” base plate

Lift Hook Compatibility

The lift hook crown must rotate freely when connected to the loop top.

Installation

• Bolt attach w/1/2” grd. 5, 8, or 18-8sst.
• Field weld or concrete embedment

Compliance

ANSI Z359.18-17 Type A/T
Intertek D-Plate 09-2020 test reports*
*Test equipment max. peak force 20,000lb
DH Glabe & Assoc. engineering report
Reports are available on request.
