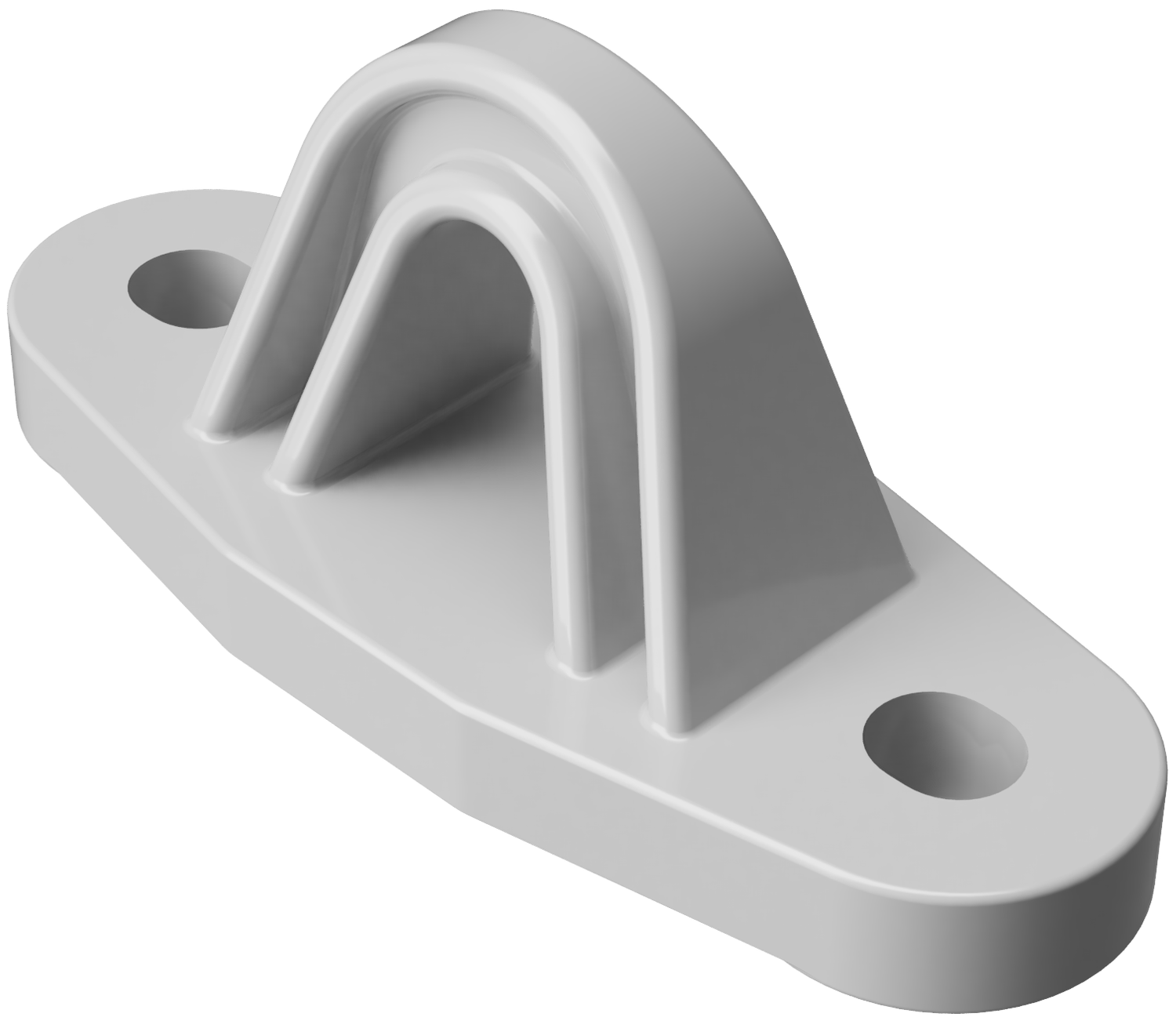

Aluminum Anchor Plate

This aluminum anchor plate is a fixed anchorage component designed for installation on steel structures where a permanent or semi-permanent attachment point is required. Manufactured from high-strength aluminum, the anchor features a formed D-shaped loop that provides a secure and durable connection point for fall protection systems, lifelines, lanyards, and other safety equipment.

Its compact, low-profile design allows for easy integration into steel structures while offering excellent corrosion resistance and long service life in demanding industrial environments.

• Manufactured from high-strength aluminum
• Lightweight yet durable construction
• Integrated formed D-loop for secure attachment
• Fixed anchor design for permanent installations
• Excellent corrosion resistance
• Low-profile base plate design

• Suitable for fall protection and restraint systems

Anchor Type: Fixed anchor plate

Material: Aluminum alloy

Finish: Natural aluminum

Installation Substrate: Structural steel

Installation Type: Bolted (fastened to steel structure)

Anchor Configuration: Base plate with formed D-loop

Number of Fixing Holes: 2

Loading Direction: Axial loading through D-loop

Reusability: Permanent installation

• Permanent fall arrest anchor points
• Horizontal lifeline attachment points
• Restraint systems
• Industrial maintenance access

• Steel platforms, beams, and frames

• Install using approved mechanical fasteners
• Fasteners must be compatible with aluminum and steel substrates
• Minimum steel thickness as specified by the manufacturer
• Installation must be performed by a competent person

• Anchor must be installed on a structurally adequate steel member

• Suitable for use in fall protection systems when properly rated

• Can be tested for compliance with:
  • OSHA 1910 / 1926
  • CSA Z259 (Canada)
  • EN 795 (as part of a certified system)
