Horizontal Lifeline Turnbuckle
C$84.00
Sale
23-SA1058
In stock
Brand: Super Anchor Safety
Product Information

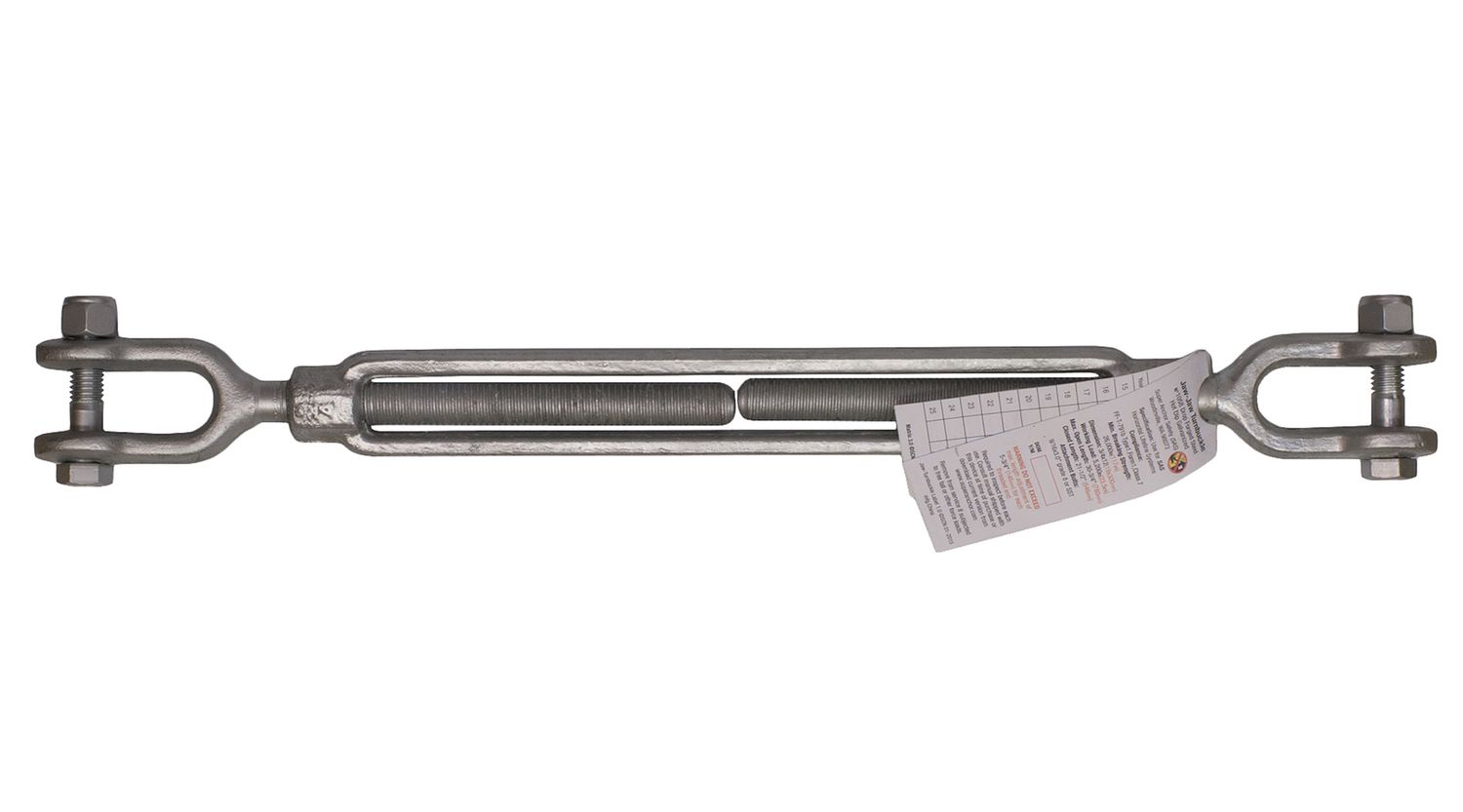

SAS’s Turnbuckle is used in-line on the HLL system. It is a ¾” x 12” hot dipped galvanized ASTM 1045 Steel Turnbuckle. Working load is 5’200lbs and the minimum breaking strength is 26’000lbs. Max extension length is 34-1/2”. Designed specifically for use with SAS commercial anchors, these components can be used with other mfg. equipment when engineered by a qualified person.
We also offer numerous parts to achieve a HLL system that works for your products including:
- Rigging Kits: our standard turnbuckle/clamps/thimbles/sliders/energy absorber for lifeline lengths up to 120’. They include everything you need for a complete installation except for the cable. Available in galvanized or stainless-steel finishes. See part numbers 1050-G and 1051-S.
- Energy Absorber: a specialized in-line energy absorber
- Turnbuckles: used in the horizontal lifeline system to adjust wire rope length and tension. Available in galvanized or stainless-steel finishes. Use 1 turnbuckle in systems up to 60’ and 2 turnbuckles in systems 60’ – 120’.
- Cable: galvanized 3/8” cable rated for 14,000 pounds. Stainless Steel rated for 12’000 pounds. Use in runs up to 120’ and in conjunction with the rigging kits.
- Cable Clamps: used to terminate the end of the cable lifelines and available in galvanized and stainless-steel finishes.
- Cable Thimble: used to terminate the end of our cable systems and are required on both ends of the HLL. Available in galvanized or stainless-steel finishes.
- SAS Coupler Adapter: used to link turnbuckles, energy absorbers and CRA together
- Slider “O” Rings: permanently attached to the HLL and used to connect your personal protective equipment to slide through pass-thru top CRA’s.
- Pass-Thru Converter: a device that converts Pass-Thru Top CRA’s into a Loop Top to connect your PPE to for a fall arrest rating
- Label Packages: comprehensive warning, instruction and inspection label packages for all rigging equipment and hardware
Please refer to all applicable Instruction/Specification Manuals for further detailed information on rigging, attachment and use.
Product Specifications
Device: Rigging Kit Parts and Accessories for CRA HLL Systems up to 130′
Metallic Energy Absorber – Specifications: 316 Stainless steel, 2″ diameter, serial numbered, minimum breaking strength 5,625 pounds
Metallic Energy Absorber – Measurements: Max HLL Length 120′, Red/Green Tension Indicator, Static length 17″, Max length 25″
Metallic Energy Absorber – Performance: Avg. Dynamic Activation Force: 771 pounds, Peak activation force: 1,322 pounds
Turnbuckle Specifications – Steel: 3/4″ Drop forged steel, hex body, 3/4″, working load 5,200 pounds, 26,000 pounds min. breaking
Turnbuckle Measurements – Steel: 3/4″x12″. Closed Length 23″. Maximum Open Length 34-1/2″. Max Length Adjustment 11-1/2″
Turnbuckle Specifications – Stainless: 3/4″ Forged 316 Stainless Steel, working load 5,200 pounds, 15,600 pounds mim. Breaking
Turnbuckle Measurements – Stainless: 3/4″x6″. Closed Length 15″. Maximum Open Length 20-1/2″. Max Length Adjustment 5-1/2″
Turnbuckle Standards: Federal FF-T-791b. Type 1. Form 1. Class 1
Cable Clamp – Steel: 3/8″ forged carbon steel base, heavy hex head nut
Cable Clamp – Stainless Steel: 3/8″ 316 stainless steel, heavy hex head nut
Cable – Galvanized: 3/8″ 7×19 galvanized wire rope
Cable – Stainless: 3/8″ 7×19 stainless wire rope
Cable Strength: 14,400 pounds
Swage Material: Aluminum Duplex Swage
Rope Thimble: 3/8″ wire rope end termination thimble, HDG
Slider “O” Ring: Drop forges, Min strength 5,000 pounds. Proof loaded to 3,600 pounds
Coupler Connector: 304 Stainless Steel, 5,000 pound minimum strength
Pass-Thru Converter: One worker, 5,000 pound rating. Mild steel, HDG with Detent Pin. Temporary use only
Label Package: Product ID, specification and inspection label
Service Length: up to 130′. Cut to length or cut in field
Maximum User Weight: 340 pounds
OSHA Standard: 1926:502
ANSI Standard: Z359.12-09
