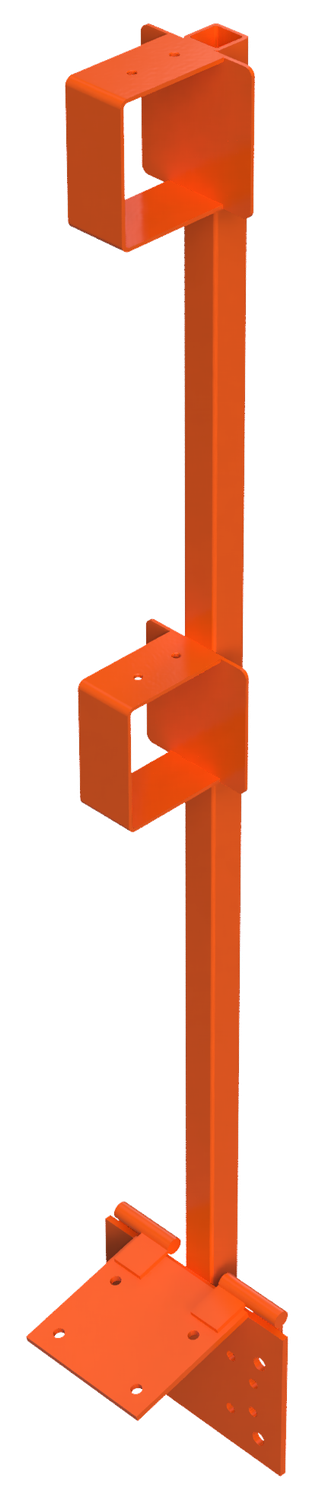

Hinged Guardrail Post – 2×4 Wood Guardrail System

The Hinged Guardrail Post for 2×4 Wood Guardrail Systems is a heavy-duty structural post designed to provide reliable and compliant fall protection in industrial, commercial, and institutional environments. Specifically engineered for use with dimensional 2×4 wood rails, this post features integrated U-shaped rail brackets that ensure a secure and stable attachment for both top and mid-rails.

The integrated hinged base allows for easy installation on flat surfaces while accommodating minor surface irregularities. Once anchored, the post delivers rigid vertical support for permanent or semi-permanent wood guardrail systems, combining structural performance with a clean, professional industrial appearance.

• Hinged base design for easier installation and alignment
• Integrated U-shaped brackets designed to accept 2×4 wood rails
• Dual rail configuration: top rail and mid-rail
• High-strength steel construction for safety-critical applications
• Fast installation using standard mechanical fasteners
• Durable powder-coated finish for long-term corrosion resistance
• Modular system component, ideal for straight runs, corners, and terminations

• Product Type: Guardrail Post – Hinged Base
• Application: 2×4 wood guardrail systems
• Post Section: Square structural steel tube
• Base Type: Hinged base plate with mechanical anchoring points
• Rail Connections:
  • Upper U-bracket for 2×4 wood top rail
  • Intermediate U-bracket for 2×4 wood mid-rail
• Mounting Method:
  • Surface-mounted using mechanical anchors (anchors not included)
  • Wood rails secured using structural screws or bolts
• Finish: Industrial powder coating (high-visibility safety color)
• Material: Structural carbon steel

• Rooftop edge protection systems
• Industrial platforms and temporary work areas
• Walkways and maintenance access zones
• Building and equipment perimeters
• Commercial and industrial facilities requiring passive fall protection

• Designed for use with dimensional 2×4 wood rails
• Compatible with modular guardrail layouts
• Suitable for temporary or permanent guardrail systems
• Easily integrated into custom safety barrier designs

• Install only on structurally sound substrates
• Use quality, defect-free 2×4 lumber suitable for structural applications
• Anchors must be selected based on substrate type and design loads
• Installation must be performed by qualified personnel
• Guardrail layout and spacing must comply with applicable safety standards.

MGW-02-103 HINGED GUARDRAIL POST - 2X4 WOOD GUARDRAIL SYSTEM
